SPECIFICATIONS

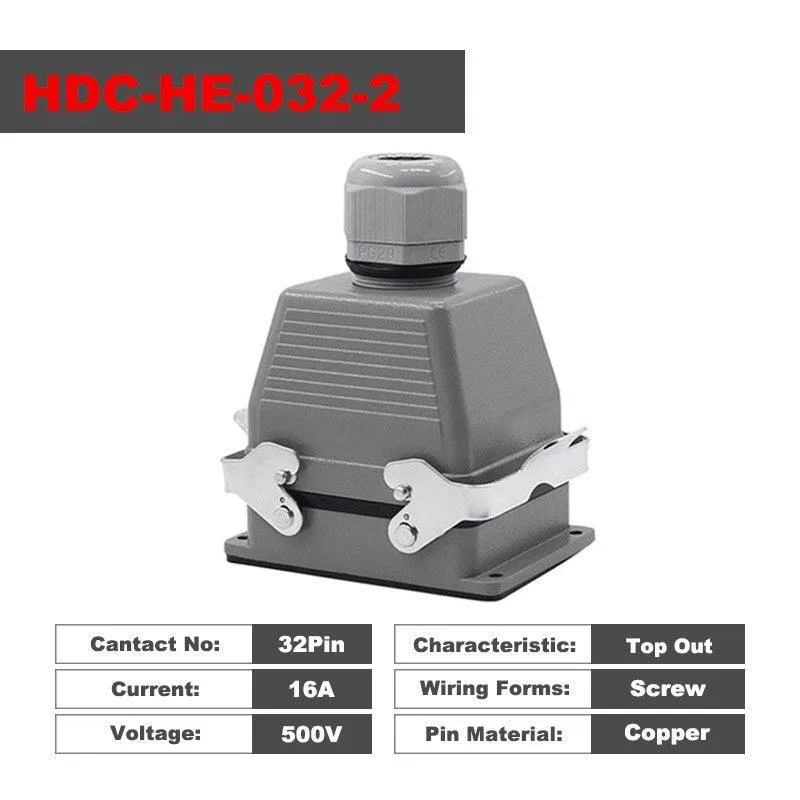

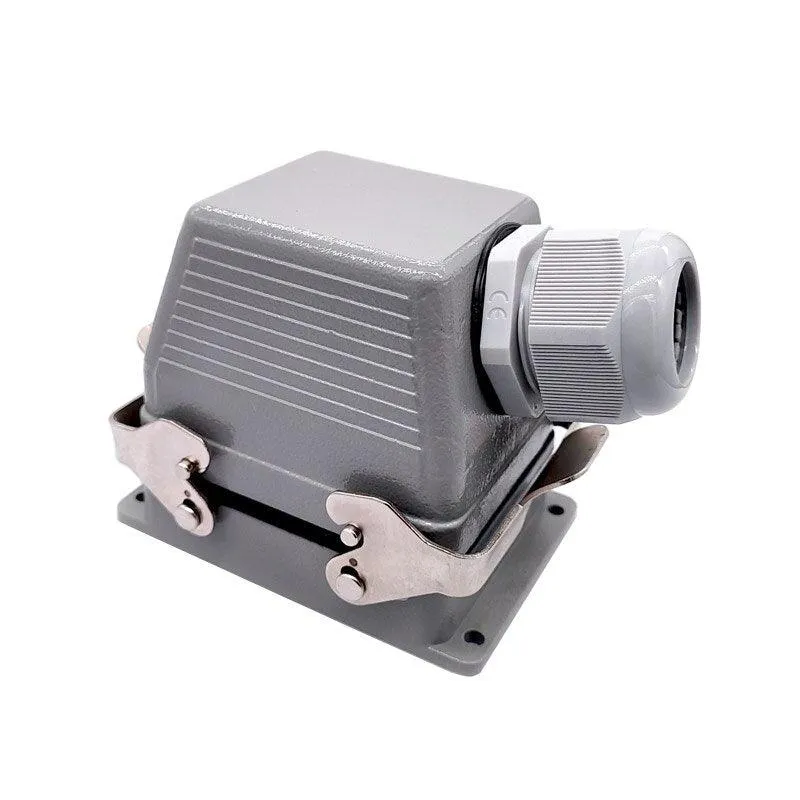

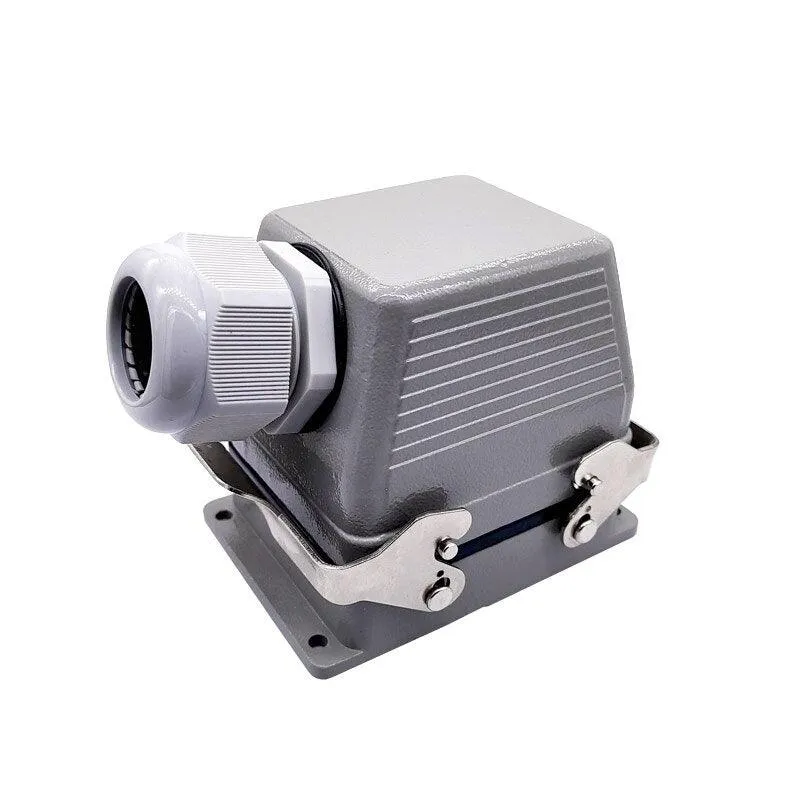

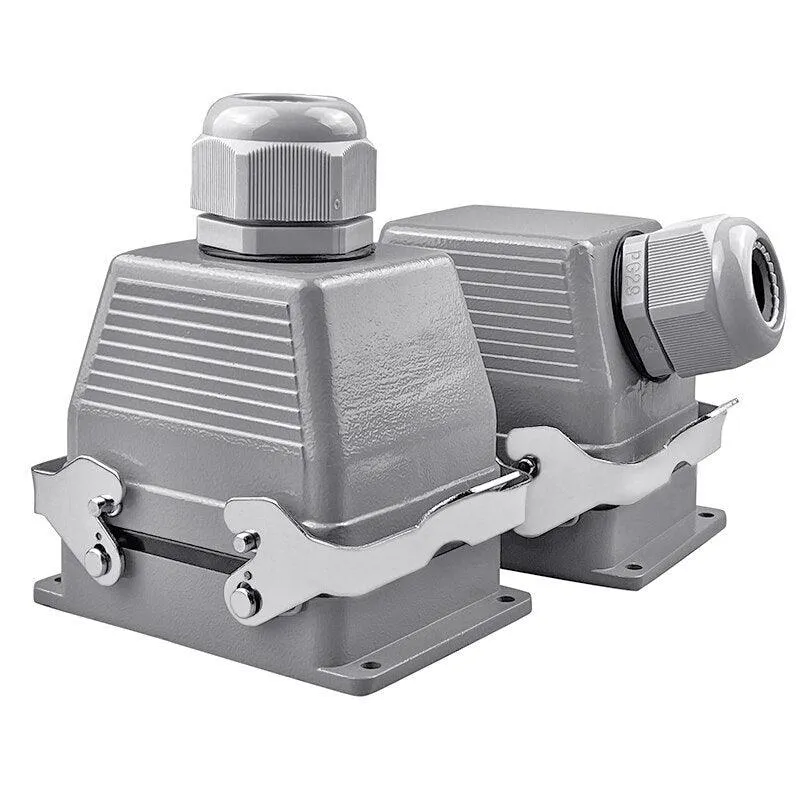

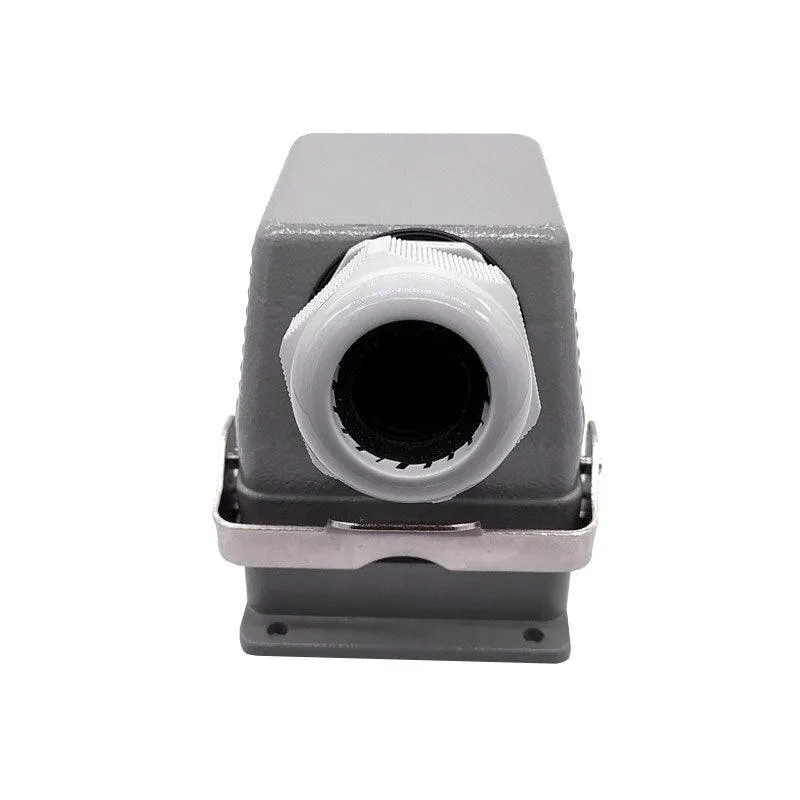

Heavy Duty Connectors HDC-HE-032-1/2 F/M 32pin 16A Industrial rectangular Aviation connector plug Screw connection

Voltage: 24V

Origin: Mainland China

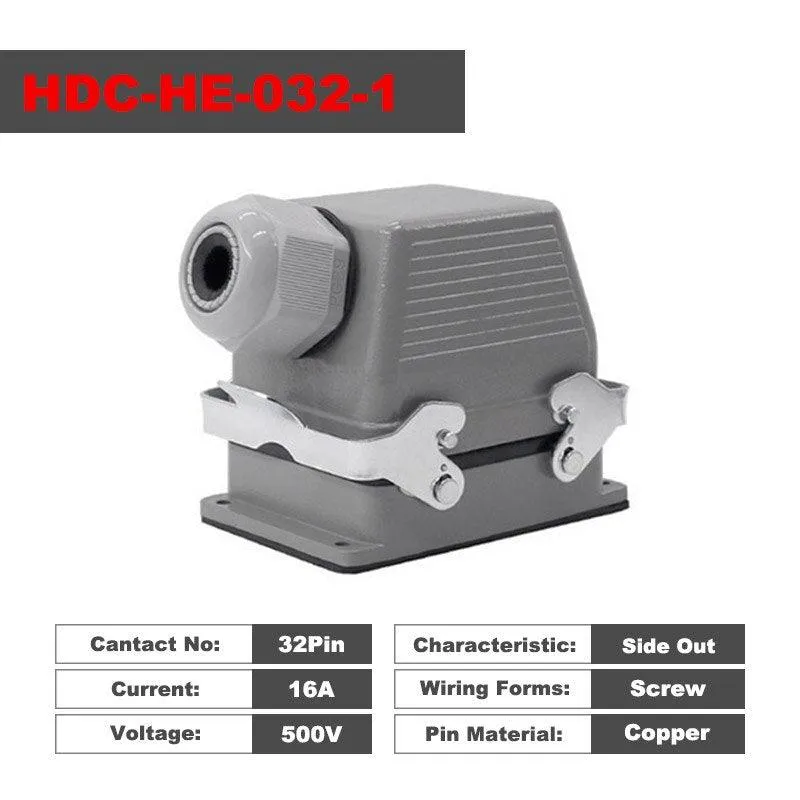

Model Number: HDC-HE-032-1

Certification: CE

Brand Name: CNMAWAY

Parameter

Plug body

Working current: 16A

Working voltage: 500V

Rated pulse voltage: 6KV

Pollution level: 3

Isolation resistance: ≥10

Material: Polycarbonate

Operating temperature range: -40℃~ 125℃

Flame retardant grade (according to UL94): V0

Installation method: hole installation

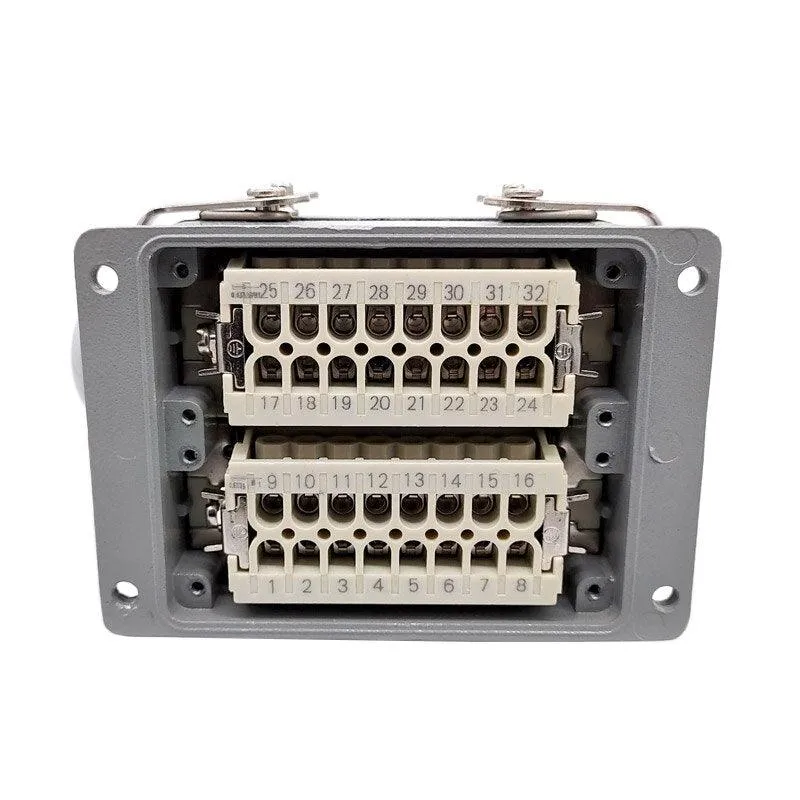

Connectors

Material: Copper

Surface treatment: silver plated

Contact resistance:=<1m ohm

Wiring form: screw connection

Screw tightening torque/test torque: 0.25Nm

Wiring forms: screw fixing

Metal upper case/base

Material: Cast aluminum alloy

Surface treatment: high temperature powder coating

Locking device: stainless steel or iron galvanized

Operating temperature range: -40℃~ 125℃

Protection class: IP65
